Earting Wires – Cable

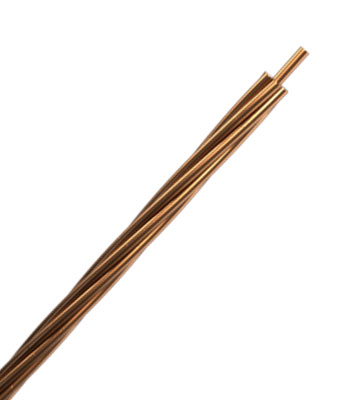

Un-sheathed copper wires in which copper is annealed with 99.99% purity and refers to class 2 (according to ISIRI 3084 standard).
The national standard for the production of this wire is ISIRI 3084, which is equivalent to the international standard IEC 60228.
₺0,00
Bugün teslimat
Ücret, rotaya bağlıdır
Kuryemiz belirtilen adrese teslim edecektir
2-3 Gün
Ücret, rotaya bağlıdır
DHL kurye belirtilen adrese teslimat yapacaktır.
4-5 Gün
Ücret, rotaya bağlıdır
1 yıl
5 Günlük
Description
If you need insulated Earthing wires, refer to the flexible and core wires page.
The most common use of the above wires is for Earth canals and Earth wells of buildings, offices, towers, industrial facilities, etc.
The specifications of un-sheathed copper wires (used in earthing) are as follows:
| Approximate weight )kg/km) | Maximum Ohmic resistance (Ω/km) | Number of wires | Size (score)
|
| 142 | 1.15 | 7 | 16 |
| 222 | 0.727 | 7 | 25 |
| 311 | 0.524 | 7 | 35 |
| 445 | 0.387 | 19 | 50 |
| 622 | 0.268 | 19 | 70 |
| 871 | 0.193 | 19 | 95 |
| 1067 | 0.153 | 37 | 120 |
| 1333 | 0.124 | 37 | 150 |
| 1645 | 0.0991 | 37 | 185 |
| 2134 | 0.0754 | 37 | 240 |
Instead of requesting earthing core with the above specifications, many customers use the specifications of hard aerial core to buy, while these cores are different in terms of structure, technical specifications and production standards.
