Circulator Pump Split Phase Electro Motors
Product Specification
| Type | Frame size | Output Power | Output Power | Rated Voltage | Speed in rated load | Rated Current | Rated Torque | Power factor | Starting / Rated Current | Starting / Rated Torque | Break down / Rated Torque | Inertia moment | Poles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SP 56-4A | 56 | 0.124 | 1/6 | 220 | 1425 | 2 | 0.83 | 0.612 | 6.35 | 1.9 | 2.38 | 0.001581 | 1 |
| SP 56-4 | 56 | 0.25 | 1/3 | 220 | 1425 | 2.5 | 1.67 | 0.781 | 10.8 | 2.48 | 1.87 | 0.002488 | 1 |
| SP56-4B | 56 | 0.124 | 1/6 | 220 | 1425 | 1.4 | 0.83 | 0.754 | 8.26 | 1.96 | 2.1 | 0.002034 | 1 |
| SP 56-4/6 | 56 | 0.25/0.07 | 1/3 / 1/10 | 220 | 1425/950 | 2.5/1.6 | 1.67/0.75 | 0.781/0.565 | 9.1 | 2 | 1.83/2.67 | 0.002488 | 1 |
₺0,00
0 People watching this product now!
Bugün teslimat
Ücret, rotaya bağlıdır
Kuryemiz belirtilen adrese teslim edecektir
2-3 Gün
Ücret, rotaya bağlıdır
DHL kurye belirtilen adrese teslimat yapacaktır.
4-5 Gün
Ücret, rotaya bağlıdır
1 yıl
5 Günlük
Description

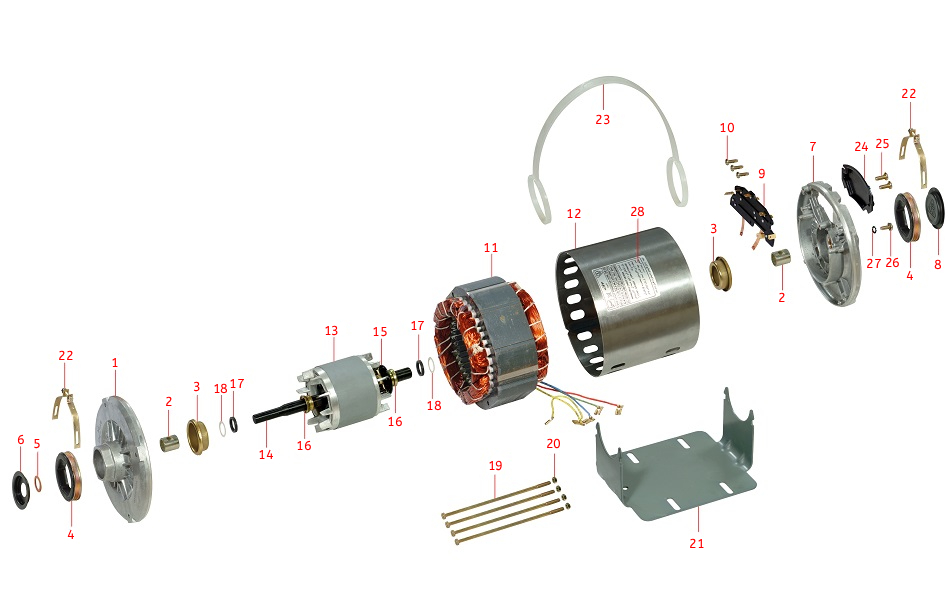

Constituent parts
1- Front bracket
2- Sliding bearing
3- Bearing cap
4- MTG ring
5- Flinger ring
6- Holed dust cap
7- Rear bracket
8- Marked dust cap
9- Special terminal (switch)
10- Screws for fastening terminal (switch)
11- Winded core
12- Frame
13- Rotor
14- Shaft
15- Governor
16- Sleeve
17- Rubber washer
18- Plastic washer
19- Assembly bolts
20- Assembly nuts
21- Base
22- Base fasteners
23- Plastic handel
24- Terminal cover
25- screws of capacitor cover
26- Ground screw
27- Washer of ground screw
28- Specifications plate
